A strain gauge load cell is the most widely used sensor for measuring force and weight. It converts tiny mechanical deformation into a precise electrical signal using bonded strain gauges arranged in a Wheatstone bridge.
From silos and truck scales to collaborative robots and materials testing, these sensors measure everything from a few newtons to hundreds of tonnes. As the elastic element deforms under load, the strain gauges change resistance, producing a millivolt-per-volt (mV/V) output proportional to the applied force.
In this guide, you’ll learn how strain gauge load cells work, the main types, the specifications that matter, and how to choose the right one for your application.
Why it matters
From retail scales and batching systems to robotics and materials testing, precise force measurement underpins process quality and safety. In this guide, you’ll learn what a strain gauge load cell is, how it works, the major types, the specs that actually matter, and how to select and integrate one for reliable results.
What is a strain gauge load cell?
Strain gauge vs strain gauge load cell—these terms are related but not interchangeable:
A strain gauge is a resistive sensor whose resistance changes with mechanical strain.
A strain gauge load cell is the complete transducer: a machined elastic body with bonded strain gauges, wiring, environmental sealing, and a cable/connector—delivering a calibrated electrical signal.
Typical sensitivity is 1–3 mV/V at rated load. With a 10 V excitation, a “2 mV/V” load cell outputs ~20 mV at full scale. Most systems therefore, need a low-noise instrumentation amplifier or a high-resolution ADC to digitize that small differential signal.
Applications include bench/platform scales, hoppers and silos, tensile testers, collaborative robots, and medical devices.Strain gauge is the most common load-cell technology, though hydraulic, pneumatic, and capacitive designs exist for specific environments.
Working principle

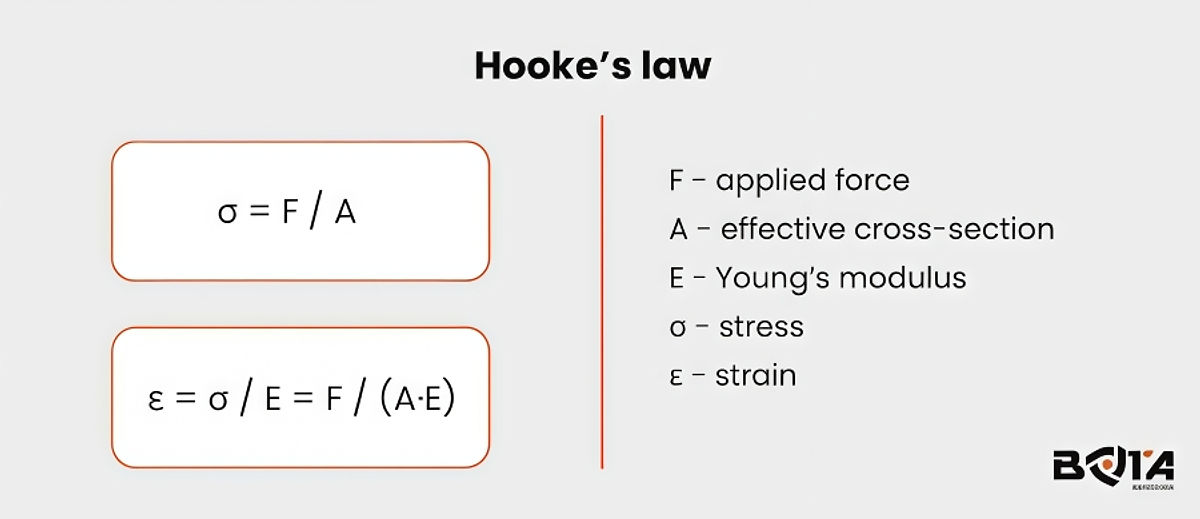

Within the working range, the elastic element follows Hooke’s law:

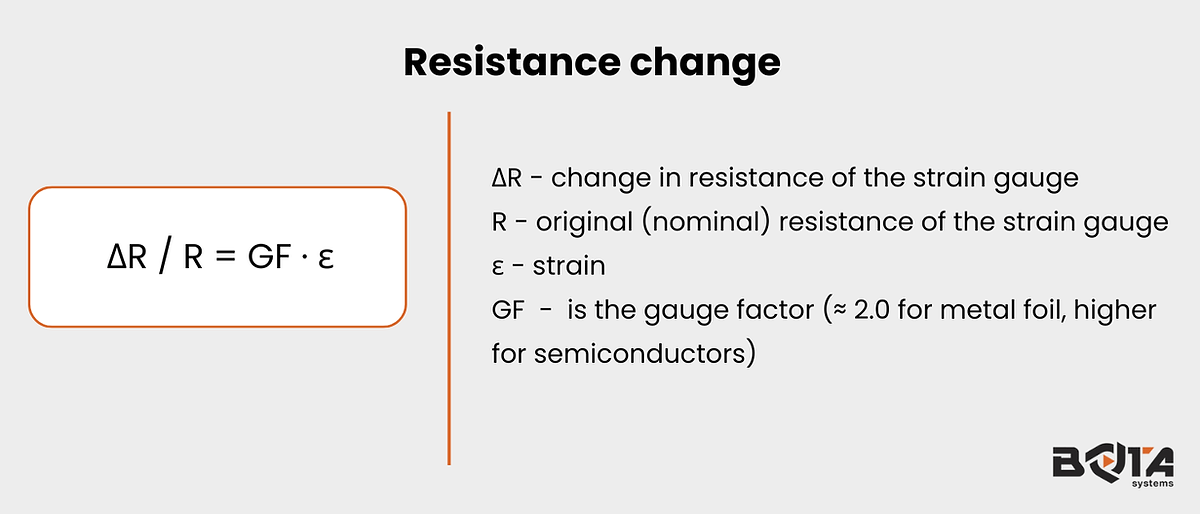

A bonded gauge converts strain to resistance change:

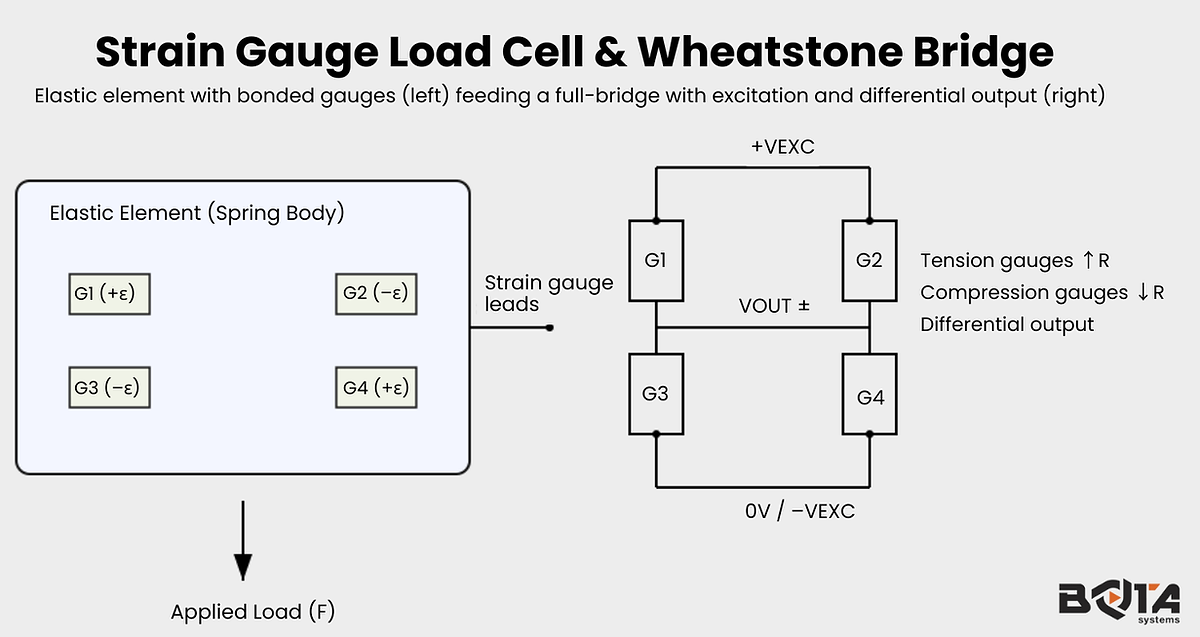

Wheatstone bridge basics
Four gauges are commonly wired in a full bridge so that tension gauges increase R while compression gauges decrease R. For small changes and ideal symmetry:
- Quarter bridge (1 active gauge): Vout ≈ (GF · ε / 4) · Vexc
- Half bridge (2 opposite-arm gauges): Vout ≈ (GF · ε / 2) · Vexc
- Full bridge (4 active gauges): Vout ≈ (GF · ε) · Vexc
Commercial strain gauge load cells use full bridges to maximise sensitivity, cancel temperature effects, and improve common-mode rejection.
Datasheets express sensitivity directly in mV/V at rated load, so a practical rule is: Vout_FS ≈ S_(mV/V) × Vexc (e.g., 2 mV/V × 10 V = 20 mV).
Practical signal considerations
Use 4-wire cabling for short runs; 6-wire (with remote sense) for long runs or variable temperature to compensate for voltage droop
Keep leads short, shielded, and properly grounded to cut noise; route away from VFDs and high-current lines.
Choose an instrumentation amplifier/ADC with sufficient gain-bandwidth and CMRR; match ADC input range and reference stability.
Types of strain gauge load cells (form factors & use cases)
The load cell’s elastic geometry determines how force is resolved into strain. Common form factors are optimised for different mounting and load paths.
Single-point (platform) — corner-load compensated; ideal for retail/bench platforms with one cell.
S-beam (tension/compression) — versatile for hanging scales and inline force measurement.
Shear beam and double-ended shear — robust floor scales, conveyors, tank/hopper weighing.
Canister/column — high capacities with excellent overload characteristics; truck scales, silos.
Pancake/spoke — low profile, high precision; materials testing and fixtures.
Miniature/button — tight spaces and robotics end-effectors.
Quick chooser:
|
Type |
Direction |
Typical capacity |
Typical uses |
|
Single-point |
Compression |
3–200 kg |
Benchtop/platform scales |
|
S-beam |
Tension/Compression |
25 kg–5 t |
Hanging scales, test rigs |
|
Shear beam |
Compression |
200 kg–10 t |
Floor scales, tanks |
|
Canister/column |
Compression |
5–500 t |
Silos, truck scales |
|
Pancake/spoke |
Compression |
1–100 t |
Materials testing |
|
Mini/button |
Compression |
50 N–50 kN |
Robotics, fixtures |
Types of strain gauges inside load cells
Several gauge technologies are used inside strain gauge load cells:
Bonded metal foil — stable, affordable, widely used; good temperature behaviour
Semiconductor — much higher gauge factor, more temperature-sensitive; used when signal amplitude is critical.
Thin-film (vacuum-deposited) — premium stability and repeatability for high-end transducers.
- MEMS (micro-machined) — compact and increasingly common inside digital and wireless load cells; trades some ruggedness for size and integration.
Sealing and protection — adhesives, carrier materials, and IP65–IP68 sealing impact drift and longevity.
The specs that actually matter: reading the datasheet
Capacity & overload — observe safe vs ultimate overload limits.
Accuracy terms (%FS): non-linearity, hysteresis, repeatability; and creep (zero/loaded over time).
Temperature effects: TC zero and TC span (e.g., %FS/°C).
Sensitivity (mV/V) & excitation (5–10 V typical; check maximum).
Input/Output resistance (bridge ohms) for amplifier matching and remote sense planning.
Environmental: IP rating, operating temperature, stainless vs alloy steel materials.
Legal-for-trade: OIML R60/NTEP classes for commercial weighing.
Selection & integration guide
- Define the load path, size capacity with a sensible safety factor, and integrate mechanically and electrically with care.
Define the load path — tension, compression, or both; account for side loads and moments.
Capacity sizing — Capacity ≥ (Dead Load + Live Load) × Safety Factor (1.2–1.5 static; higher for shock/vibration).
Mechanical integration — use appropriate mounts (rocker columns, foot mounts), align the force vector, and trim corners in multi-cell platforms via a junction box.
Electrical integration — prefer 6-wire cells (±EXC, ±SIG, ±SENSE) for long runs/temperature variation; use shielded twisted pairs and a single-point ground; choose a matched amplifier/ADC or digital load cell. Digital load cells, with the amplifier and ADC built in and output over RS-485, CANopen, or a wireless link, are increasingly common where running analog cable isn’t practical.
Calibration & troubleshooting
Zero and span with traceable weights; shunt calibration for quick bridge health checks. A practical baseline is annual calibration, more often in harsh environments or high-cycle use — see the full calibration walkthrough for the zero/span/shunt procedure in detail.
If readings drift: inspect mounting bolts, seals, cable nicks, moisture ingress, and temperature swings.
Bridge resistance out of spec often indicates damaged gauges or cabling.
Intermittent outputs typically trace back to loose connectors or EMI.
Strain gauge load cell vs. 6-axis force-torque sensor

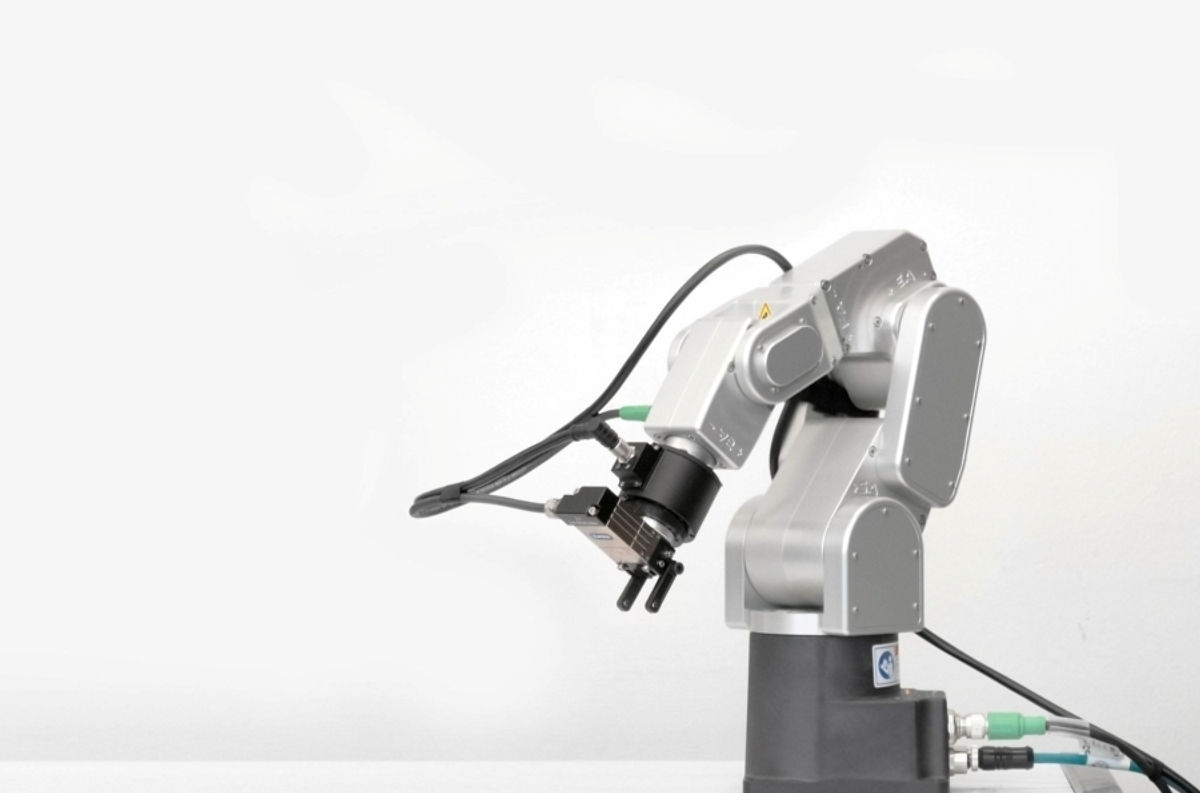

A strain gauge load cell is built to resolve one dominant force direction well, tension, compression, or occasionally both. A 6-axis force-torque sensor uses the same strain-gauge and Wheatstone-bridge principle described above, but resolves three forces and three moments (Fx, Fy, Fz, Mx, My, Mz) simultaneously from one compact body.
Most weighing applications only require one force axis. However, robotic manipulation, force-controlled assembly, and contact-rich tasks often require measuring forces and torques simultaneously, making a 6-axis sensor the more appropriate choice.
| Single-axis load cell | 6-axis force-torque sensor | |
| Measures | One dominant force direction | 3 forces + 3 moments at once |
| Best fit | Weighing, tension/compression testing, inline force | Robot wrist contact, force-guided assembly, polishing |
| Off-axis loads | Usually an error source to eliminate | Part of the measurement |
Conclusion
A strain gauge load cell uses bonded gauges on an elastic element, wired as a Wheatstone bridge, to convert force into a precise electrical signal.
Choosing the right form factor, sizing capacity with a sensible safety factor, integrating with proper mounts and wiring (ideally 6-wire), and performing regular calibration will deliver stable, reproducible measurements in real-world conditions.
That same instinct, matching wiring and sample rate to the job, scales up: sensors with the amplifier and protocol support built in apply it across six force and torque channels sampled at up to 3840 Hz, not just one.Engineering teams can request a quote for their application to identify a 6-axis sensor configuration that fits those requirements.
About Bota Systems
Bota Systems develops compact, high-performance multi‑axis force‑torque sensing solutions and accessories for robotics, automation, and research.
Our focus on precision, robustness, and easy integration helps teams instrument end effectors, validate processes, and close the loop on force‑controlled applications.
From plug‑and‑play electronics to software interfaces, Bota Systems makes it straightforward to turn accurate force measurements into better products and safer, more capable robots.
FAQs
Strain gauge vs load cell—what’s the difference?
A strain gauge is the resistive sensor. A load cell is the complete bridge-wired, calibrated transducer assembly that produces a usable electrical output (in mV/V) proportional to force/weight.
| Choose a bare strain gauge when | Choose a complete load cell when |
| The structure itself can be the elastic element and you can model or test the local strain | You need a calibrated force value without engineering the bridge yourself |
| Custom geometry is required | Accuracy and overload ratings must be known upfront |
| Your team can bond, wire, and calibrate gauges in-house | Integration time matters more than component cost |
What output do strain gauge load cells produce?
A small differential signal specified as mV/V at rated load (e.g., 2 mV/V). With 10 V excitation, that’s ~20 mV full-scale—hence the need for a precision amplifier/ADC.
Can I use a strain gauge load cell with Arduino/PLC?
Yes—use a load-cell amplifier (instrumentation amp or dedicated ADC module). Ensure input range, filtering, and sample rate match your application.
Can a strain gauge load cell measure force and torque at the same time?
A single strain gauge load cell resolves one force direction, so no. Measuring force and torque together needs either several coordinated single-axis cells or, more directly, a 6-axis force-torque sensor built for that from the start.
Is a strain gauge load cell the right choice for impact or high-frequency force measurement?
It depends on bandwidth. A strain gauge load cell handles static and slowly changing loads well and can track cyclic loads within its mechanical bandwidth, but very fast impact events often call for a piezoelectric sensor instead, since piezoelectric elements respond faster and don’t need a bridge to settle. Check the pulse duration and required sample rate before choosing either.
